Broadcast and Pro AV Cables

High-strength LAN cables for temporary outdoor installation of PA systems:
SAN-Stage™

High-strength LAN cables for temporary outdoor installation of PA systems:SAN-Stage™ - Step on it. Directly bury it. Apply Cat.5e (250 Mbps x 4) to it. No problem!

Step on it. Directly bury it.
Apply Cat.5e (250 Mbps x 4) to it. No problem!

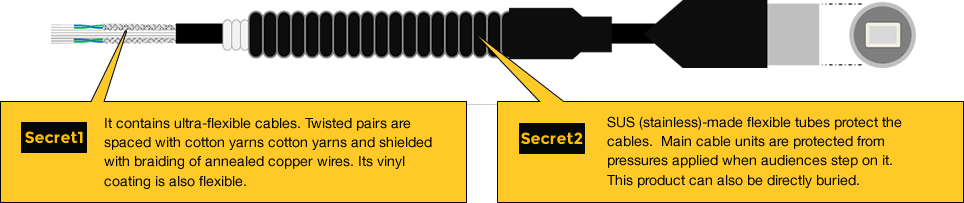

We appreciate your patience! High-strength LAN cables which are optimal for outdoor live events which are increasing every year are finally released. Let us present our original design product, “SAN-Stage™.” The concept is “extremely flexible high-speed LAN cables protected by extremely strong SUS tubes.” These digital PA system cables are unbreakable even when being stepped on or pounded on.

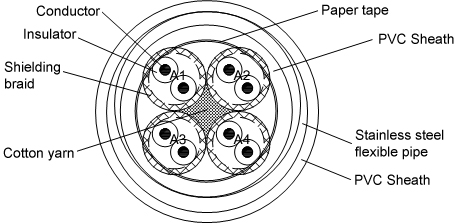

SAN-Stage™ Overview

  • Core size x Pair : 0.1mm2 x 4 pairs
  • O.D. : 10mm (Typ)
  • Weight : 200kg/km (Typ)*
  • Load capacity : TBD
  • Connector type : RJ45

* Stainless steel flexible Pipe type. Cable part only, connectors are not included

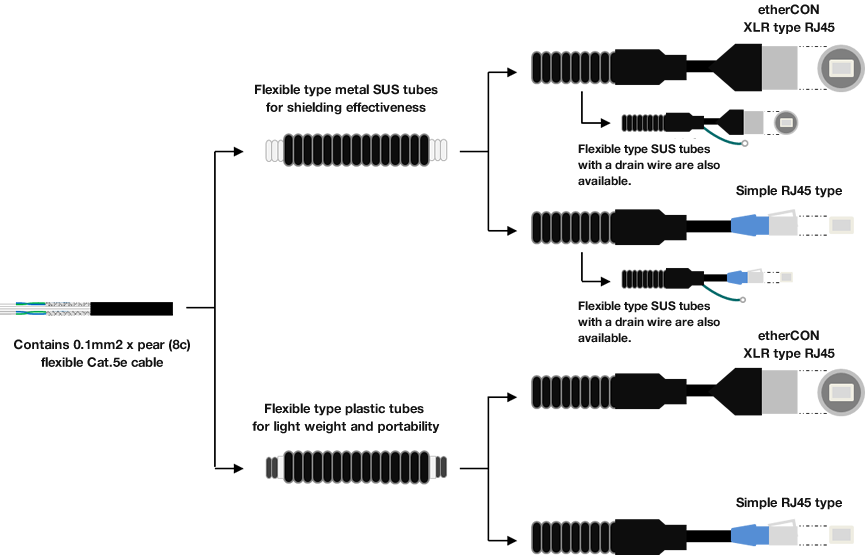

SAN-Stage™ Product Variation

SAN-Stage™ 製品バリエーション

  • In response to our customers’ requests, such as “shield cables with metal tubes even for temporary installation at live event places” and “prioritize portability over shielding because long cables are used,” we offer two types of flexible parts: Flexible metal parts and flexible plastic parts.
  • Types that “with drain wire” are also available for certain earthing of surge noises from lighting, video, and other power systems*.
  • RJ45 is available in several types, such as the popular XLR type and simple types with high versatility.
  • Standard products can be manufactured up to a length of 100 m.
  • In addition, we can respond to a wide range of customization orders: From materials of conductors and insulations, number of cores, shielding methods, protection shapes to processing of terminals. We will provide “professional tools” to satisfy you!

*Wired to flexible SUS. Please separately contact us for more information on earthing from connector housings or braided shields.

For consultation and/or more information:

Please feel free to contact us for more information about our High-strength LAN cables for temporary outdoor installation of PA systems: SAN-Stage™

+81-48-441-0331

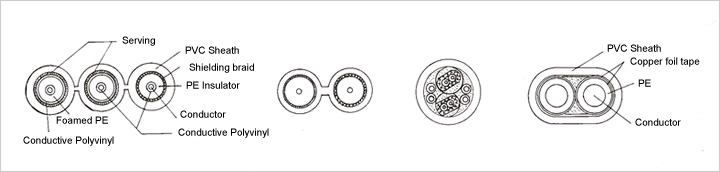

Broadcast and Pro AV Cables for General Purposes

Broadcast and Pro AV Cables for General Purposes Overview

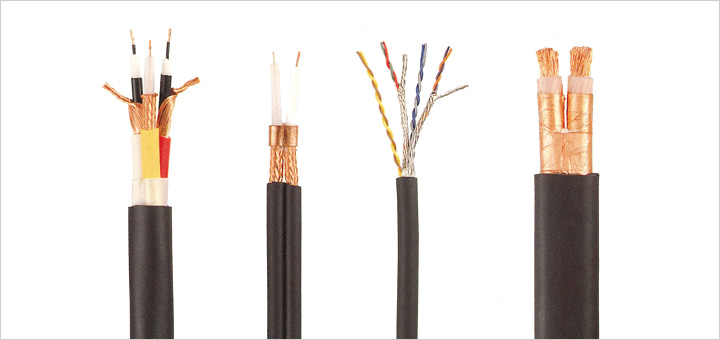

These cables are used for high-end audio speakers. Some professional magazines also introduced applications of this product for speakers in large-scale concert halls and for high-quality audio systems.

Broadcast and Pro AV Cables for General Purposes Features

This product uses OFC (oxygen free copper) or dedicated sheath materials specialized for improvement of sound quality.
In addition, touch noises are reduced through application of highly dense braiding. Realistic sounds are reproduced. Composite cables can also be manufactured applying coaxial cables which enable high-quality and low-loss signal transmission.
