Armored Cables (for Collision Experiments) Overview

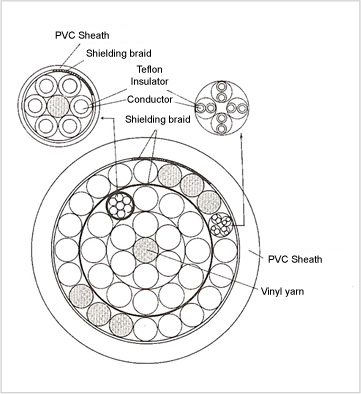

These cables were developed for vehicle collision experiments. Fixed type and moving type are available. Anticipating a large amount of signal transmission and occurrences of external noise at the moment of collision, we thoroughly cut noise with double-shields in addition to shielding of each pair of the core structure with braiding. We contributed to precise measurement of numeric values.
Armored Cables (for Collision Experiments) Features
Various designs are available for each measuring item. This product uses easy-to-slide Teflon wires to reduce friction noise between insulations.
| Conductor | Insulator | Stranding | Shield | Sheath | Electric Characteristics |
Length m |
||||||
| Cross-section (Typ) mm2 |
Structure number/mm |
O.D. mm |
Thickness mm |
O.D. (Typ) mm |
Number of Cores | Braiding | Thickness mm |
O.D. (Typ)mm |
Conductor resistance (20℃) Ω/km |
Test voltage V/min |
Insulation resistance (20℃) MΩ-km |
|
| 0.2 | 7/0.2 | 0.6 | 0.15 | 0.9 | 220 | braided | 3.0 | 35.0 | 90 | 1,000 | 1,000 | BTO |
