Indoor wiring DC codes for DC lighting (LED, etc.) [Patent pending]

High-tension two-core parallel coaxial cables

■Weight limit for suspension: 40 kg

High-tension two-core parallel coaxial cables

These cables are electric wires for suspended DC lighting in commercial and residential buildings. We uniquely designed this product to integrate tensile strength fibers for suspension with braiding of solder plated wires for DC power supply.
We assure your satisfaction for every aspect of this totally new electric wire for light fixtures: Transparent sheaths for excellence in design; great electrical properties and mechanical strength; and its two-core parallel coaxial structure with remarkable workability.

High-tension small-diameter cables

■Weight limit for suspension: 15kg
■ Repeated flexing: 5000 times or more

*Based on our unique testing method

High-tension small-diameter cables

These cables are electric wires for suspended DC lighting in commercial and residential buildings. We uniquely designed this product to add tensile strength fibers for suspension to a single core for small-diameter cables and outer conductors. This is a totally new electric wire for light fixtures which realizes not only a reduction in overall diameter for DC power supply but also great load capacity for suspension.
In addition, tensile strength fibers absorb lateral pressures in flexing, providing high resistance to highly loaded repeated flexing of five thousand times or more*.

DC lighting (LED, etc.): Vinyl-coated color cables for fixtures

Two-core cable type

Two-core cable type

These two-core cables are used between AC adapters and DC light fixtures. The coated surface has a chic surface texture and color coordination to enhance designed lighting.
The interior contains cables in two colors, red / black or white / black for easy identification in addition to simple processing of terminals and mounting of intermediate switches.

Small-diameter cable type, S-MVVS

Small-diameter cable type, S-MVVS

These two-core cables are used between AC adapters and DC light fixtures. The coated surface has a chic surface texture and color coordination to enhance designed lighting.
The interior contains a single core for small-diameter cables and outer conductors which enables both DC power supply and a reduction in overall diameter.

AC lighting

Braided nylon VTF (twisted pair)

Braided nylon VTF (twisted pair)

These braided nylon cables are popular power codes for highly fashionable interior light fixtures.
To match the texture and look, this product offers changeable braiding materials, various colors and other customization.

Processing of terminals

[For DC] Mounting of plugs / jacks and intermediate switches
[For AC]Mounting of ceiling rosettes and round-shaped crimp terminals

[For DC]

Mounting of plugs / jacks and intermediate switches

[For AC]

Mounting of ceiling rosettes and round-shaped crimp terminals
Please contact us for more information about other options.

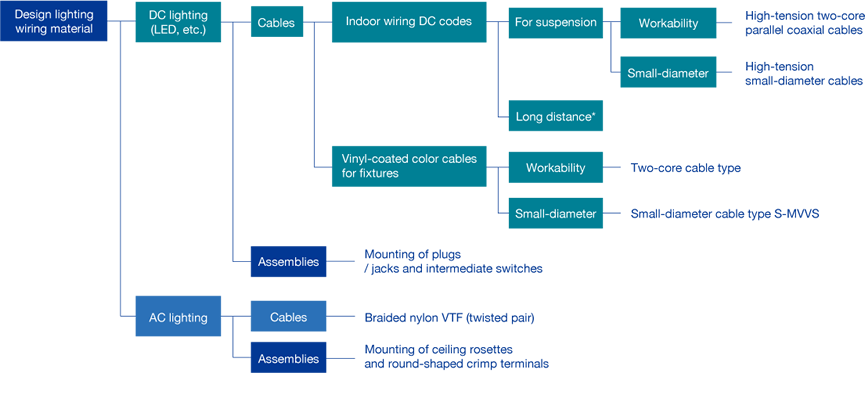

Structural diagram of products and services

image : Structural diagram of products and services

*For indoor wiring applications for walls, etc. which do not require tension, “vinyl-coated color cables for fixtures” can be used without any modification.

FAQ

What is the minimum lot size (length and quantity)?

For our standard products, we can sell from a unit of one bundle of 50-m electric wires for AC lighting and 100-m electric wires for DC lighting. However, we respond to transparent sheath products and products with non-standard colors and wire diameters based on build-to-order manufacturing. In addition, prices vary depending on lots. Please contact our sales personnel for more information about any of these questions.

How long does it take for delivery?

We set delivery periods depending on design, inventory and conditions of process loads for each case. Delivery can be made immediately or may require two to three weeks depending on the situation. Please contact our sales personnel for more information.

How much are development / design and initial costs if custom designs are requested?

We do not charge you for development / design. However, we may consult with you for the costs of jigs / molds for special shapes, if necessary.
We will try to meet your various customization requests for electrical specifications, outer diameter, number of strands, braided materials, colors, number of cores, load capacity, etc.

It is troublesome if colors and textures change for each of the purchased lots. Can stable supply be guaranteed?

We internally store and manage materials and manufacturing conditions. We can stably deliver products to meet the needs of our customers. However, please excuse us for the cases in which material manufacturers discontinue production.

Selection Table/Standard Specifications

  For DC For AC
Indoor wiring DC codes Vinyl-coated color cables for fixtures Braided nylon
VTF *3 (twisted pair)
High-tension two-core parallel coaxial cables High-tension small-diameter cables Two-core cable type Small-diameter cable type S-MVVS
Part Number SDL-HT2 SDL-HT1 SDL-VV SDL-S-MVVS SDL-HT2
Purposes AC × × × ×
DC
For fixtures ×
Wiring
Suspension × ×
Features Workability
Small-diameter × ×
Standard
Specifications
◆Structure

Conductor : tin-plated soft copper wires braiding 3 / 0.12mm x 16Carrier, ODφ1.3

Sheath : PVC sheath, OD 2.7mm x 5.4mm

◆Weight limit for suspension

40kg

◆Customizing
Color, Covering Material, Number of cores, Electrical specifications, OD, Load capacity, etc.

◆Structure

Center conductor : tin-plated soft copper wires 0.07mm2 (13/0.08), ODφ0.33

Outer conductor : OD 0.12mm tin-plated soft copper wires(Serving)、ODφ1.6

Sheath : PVC sheath, ODφ2.5

◆Weight limit for suspension
15kg

◆Customizing
Color, Covering Material, Number of cores, Electrical specifications, OD, Load capacity, etc.

◆Structure

Conductor : tin-plated soft copper wires 0.08mm2 (7/0.12)

Sheath : PVC sheath, ODφ2.9

◆Standard color
White, Black

◆Customizing
Color, Covering Material, Number of cores, Electrical specifications, OD, etc.

◆Structure

Center conductor : tin-plated soft copper wires 0.3mm2 (12/0.18)

Outer conductor : OD 0.12mm tin-plated soft copper wires, ODφ1.74

Sheath : PVC sheath, ODφ2.9

◆Standard color
White, Black

◆Customizing
Color, Covering Material, Number of cores, Electrical specifications, OD, etc.

◆Structure

Conductor : tin-plated soft copper wires 0.75mm2 (30/0.18)

Sheath : PVC sheath, φ2.7codes (twisted pair)

◆Braiding material
Nylon, Cotton, fiberglass, etc.

◆Customizing
Color, Covering Material, Number of cores, Electrical specifications, OD, etc.

*1: Please contact our engineers for fixation of tensile strength fibers for suspension and vertical and horizontal tensions.
*1: Please use this “high-tension type” for any cases of tensions due to fixation on walls / ceilings including wiring without suspension.
*2: This is limited to indoor wiring with no tensions on walls, etc. For suspension, the “high-tension type” must be used.
*3: VTF which is an abbreviated JIS code which explains wire materials and structures means “twisted-pair vinyl cables (two single wires are twisted as a pair)”.
